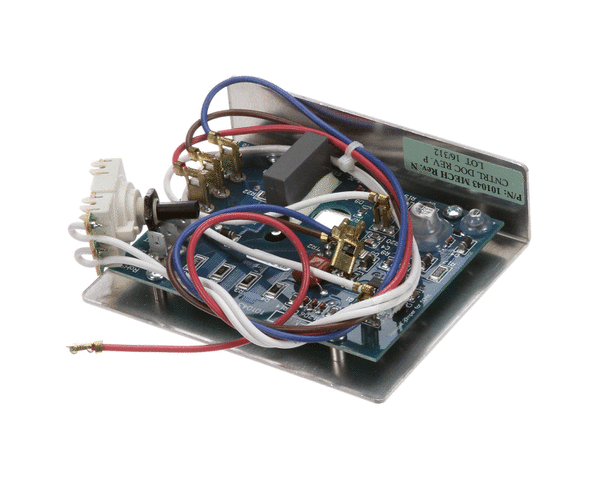

VITA-MIX 15763

SPEED CONTROL CIRCUIT BOARD &

A printed circuit board (PCB) mechanically supports and electrically connects electronic components or electrical components using conductive tracks, pads and other features etched from one or more sheet layers of copper laminated onto and/or between sheet layers of a non-conductive substrate. Components are generally soldered onto the PCB to both electrically connect and mechanically fasten them to it.

A circuit is a closed path that allows electricity to flow from one point to another. It may include various electrical components, such as transistors, resistors, and capacitors, and the flow is unimpeded unless that path is interrupted by a breaker.

Controls of all kinds are integral parts of restaurant equipment operation. A control is a switch or other device by which a machine is regulated. A control may be manual or automatically operated. An electro-mechanical control typically consists of multiple relays, timers, and/or counters wired together on an enclosure panel. Electro-mechanical control is also referred to simply as "Relay Control", which is a more accurate term since solid state electronic relays, timers, and counters are standard components. Contactors, motor and compressor starters, valves, thermostats, and other output devices are used to turn on/off motors, indicator lights, heating elements, and other components used in the equipment.
