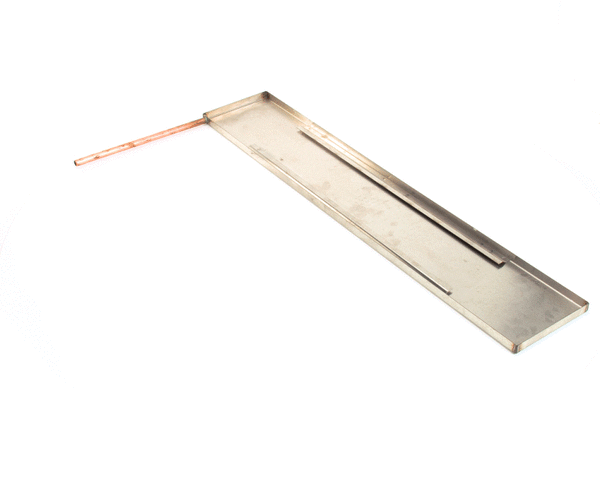

Norlake 122690S

EVAPORATOR DRAIN PAN ASSEMBLY

A drain is a channel, conduit, or pipe designed to carry away or channel superflous liquids for disposal or reclamation. A drain assembly is one or more components of a larger mechanism that facilitates as a drain. A drain assembly component may be a pipe, stopper, pan, basket, valve, filter, plug, hose etc.

A drip pan or drain pan is a container for catching material such as water or grease that drips from above (as from the burners of a gas range or condensation from an evaporator).  It is usually a shallow rectangular metal or plastic pan used especially for baking and roasting, frying, and water containment and may be connected to a drain or drain pipe.

The purpose of the evaporator is to extract heat from the ambient environment (such as the space inside of a refrigerator/freezer/walk-in) allowing that space to cool to a desired temperature which is controlled by a thermostat.
