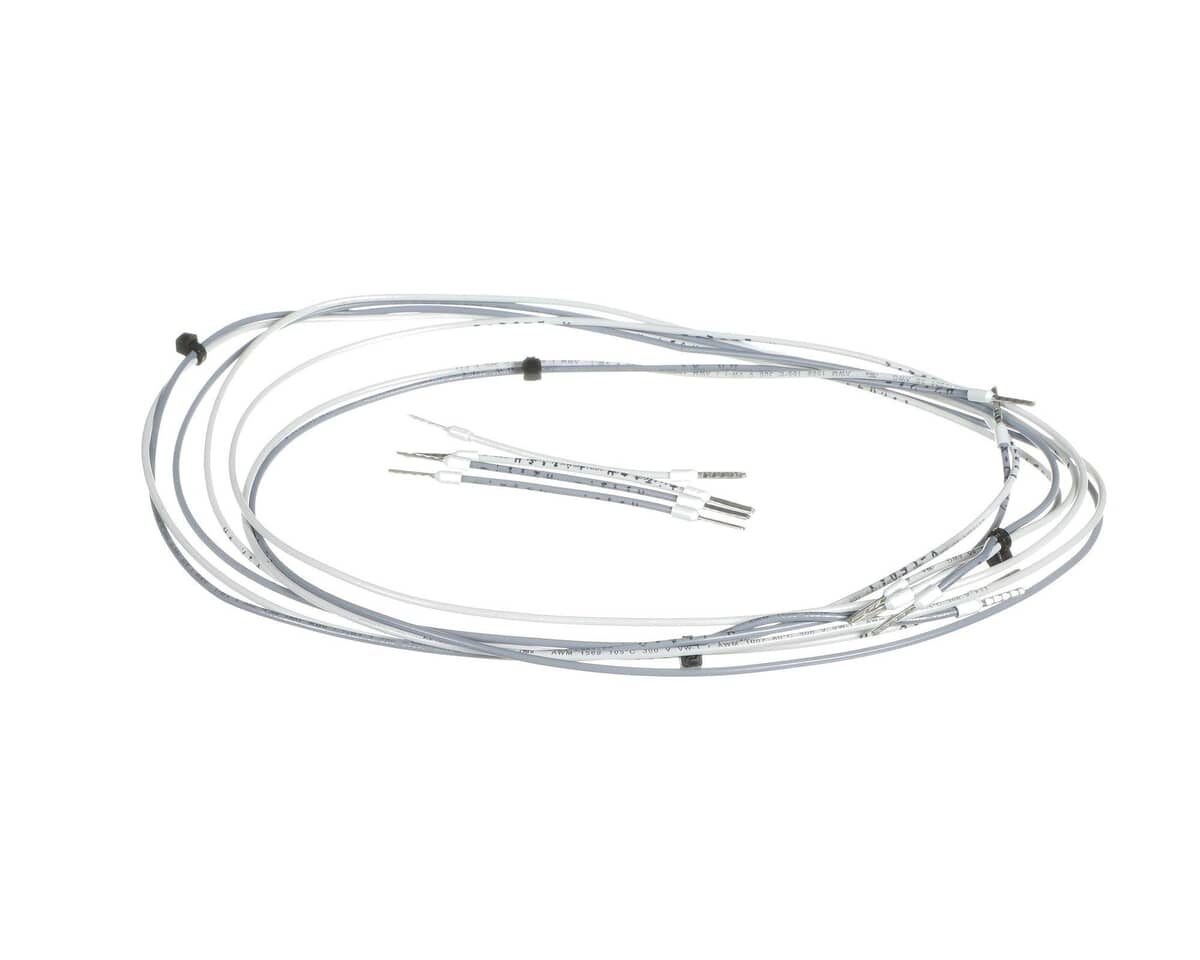

Eloma EL2005502

CABLE HARNESS LED LIGHTING DOOR 6/10-11

Cables of many forms are pervasive in foodservice equipment. A cable is a wire or grouping of wires usually insulated and held together within an overall sheath. The assembly is used for the transmission of electrical power or electrical signals to and from various components within a piece of equipment. Cables may be housed internally such as with ribbon cables, or may be external such as with power cords. An electrical cable is an assembly of one or more wires running side by side or bundled, which is used to carry electric current.

A cable assembly is the composition of one or more electrical cables and their corresponding connectors. A cable assembly is not necessarily suitable for connecting two devices but can be a partial product (e.g. to be soldered onto a printed circuit board with a connector mounted to the housing). Cable assemblies can also take the form of a cable tree or cable harness, used to connect many terminals together.

Doors are common in restaurant equipment design from refrigerators and freezers, to ovens to ice machines. A door is a hinged or otherwise movable panel that allows access to an enclosure, cabinet, bin, or other cavity or container.  A door assembly comprises the components that work in tandem to allow the door to function properly such as the door set, strike, catch and lock set. Doors may be hinged and swing open and closed, or they may slide within a frame. Very frequently, restaurant equipment doors feature tempered glass windows which allow for visual inspection or merchandising of food and beverage products.

A cable harness, also known as a wire harness, cable assembly, wiring assembly or wiring loom, is an assembly of electrical cables or wires which transmit signals or electrical power. The cables are bound together by a durable material such as rubber, vinyl, electrical tape, conduit, a weave of extruded string, or a combination thereof.

A light-emitting diode (LED) is a semiconductorlight source that emits light when current flows through it. Electrons in the semiconductor recombine with electron holes, releasing energy in the form of photons. The color of the light (corresponding to the energy of the photons) isdetermined by the energy required for electrons to cross the band gap of the semiconductor. White light is obtained by using multiple semiconductors or a layer of light-emitting phosphor on the semiconductor device.
