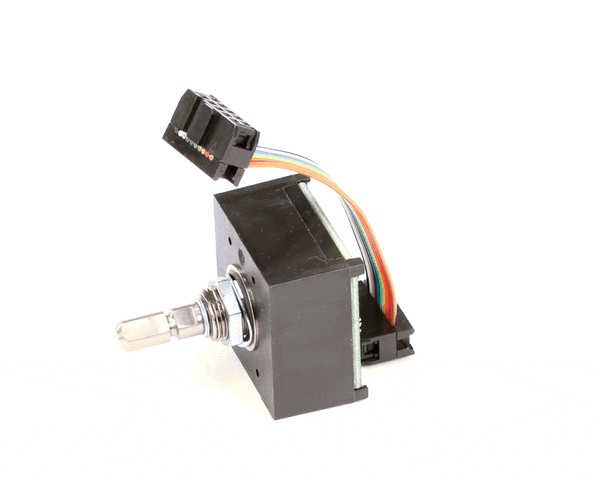

Convotherm 5056359

ENCODER WITH CABLE EASYDIAL CO

Cables of many forms are pervasive in foodservice equipment. A cable is a wire or grouping of wires usually insulated and held together within an overall sheath. The assembly is used for the transmission of electrical power or electrical signals to and from various components within a piece of equipment. Cables may be housed internally such as with ribbon cables, or may be external such as with power cords. An electrical cable is an assembly of one or more wires running side by side or bundled, which is used to carry electric current.

A cable assembly is the composition of one or more electrical cables and their corresponding connectors. A cable assembly is not necessarily suitable for connecting two devices but can be a partial product (e.g. to be soldered onto a printed circuit board with a connector mounted to the housing). Cable assemblies can also take the form of a cable tree or cable harness, used to connect many terminals together.

An encoder is a sensor which turns a position into an electronic signal. There are two forms:

• Absolute encoders give an absolute position value.
• Incremental encoders count movement rather than position. With detection of a datum position and the use of a counter, an absolute position may be derived.

The position may be measured as either linear or angular position:

• A Linear encoder converts linear position to an electronic signal
• A Rotary encoder converts rotary position to an electronic signal
