Continental Refrigeration CM6-0038

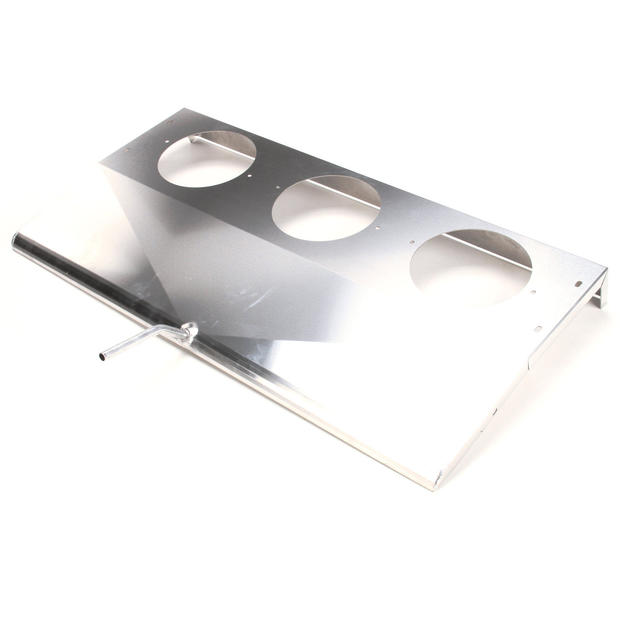

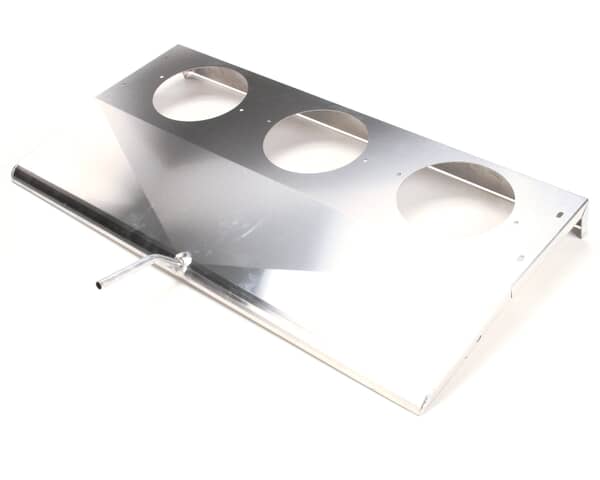

DRAIN PAN EVAP (COIL HOUSING) INCL: (1)

Various coils are used in restaurant equipment componentry. An electromagnetic coil is an electrical conductor such as a wire in the shape of a coil, spiral or helix. They are used in electrical engineering, in applications where electric currents interact with magnetic fields, in devices such as electric motors, generators, inductors, electromagnets, transformers, solenoid valves, and sensor coils. Either an electric current is passed through the wire of the coil to generate a magnetic field, or conversely an external time-varying magnetic field through the interior of the coil generates an EMF (voltage) in the conductor.

In refrigeration equipment, the "condenser coil" dispels hot air to the outside of the space. The refrigerant then loops back to the compressor, gets cold again, absorbs heat and disperses it to the outside. As long as the compressor is running, the refrigerant keeps up this continuous loop. Extracting heat from the storage space and transferring it to the refrigerant is the function of the "evaporator coil".

In dish washing machines, the steam coil preheats incoming water, reducing the energy needed to heat the water used in the sanitizing rinse.

A drain is a channel, conduit, or pipe designed to carry away or channel superflous liquids for disposal or reclamation. A drain assembly is one or more components of a larger mechanism that facilitates as a drain. A drain assembly component may be a pipe, stopper, pan, basket, valve, filter, plug, hose etc.

A drip pan or drain pan is a container for catching material such as water or grease that drips from above (as from the burners of a gas range or condensation from an evaporator).  It is usually a shallow rectangular metal or plastic pan used especially for baking and roasting, frying, and water containment and may be connected to a drain or drain pipe.

The purpose of the evaporator is to extract heat from the ambient environment (such as the space inside of a refrigerator/freezer/walk-in) allowing that space to cool to a desired temperature which is controlled by a thermostat.

A housing is a mechanical component's container or covering. In restaurant equipment, a housing is an exterior case or enclosure used to protect an interior mechanism, including integrated fittings or brackets to keep internal components in place. The housing prevents the interior mechanism from being fouled by outside debris or to contain the internal components.
