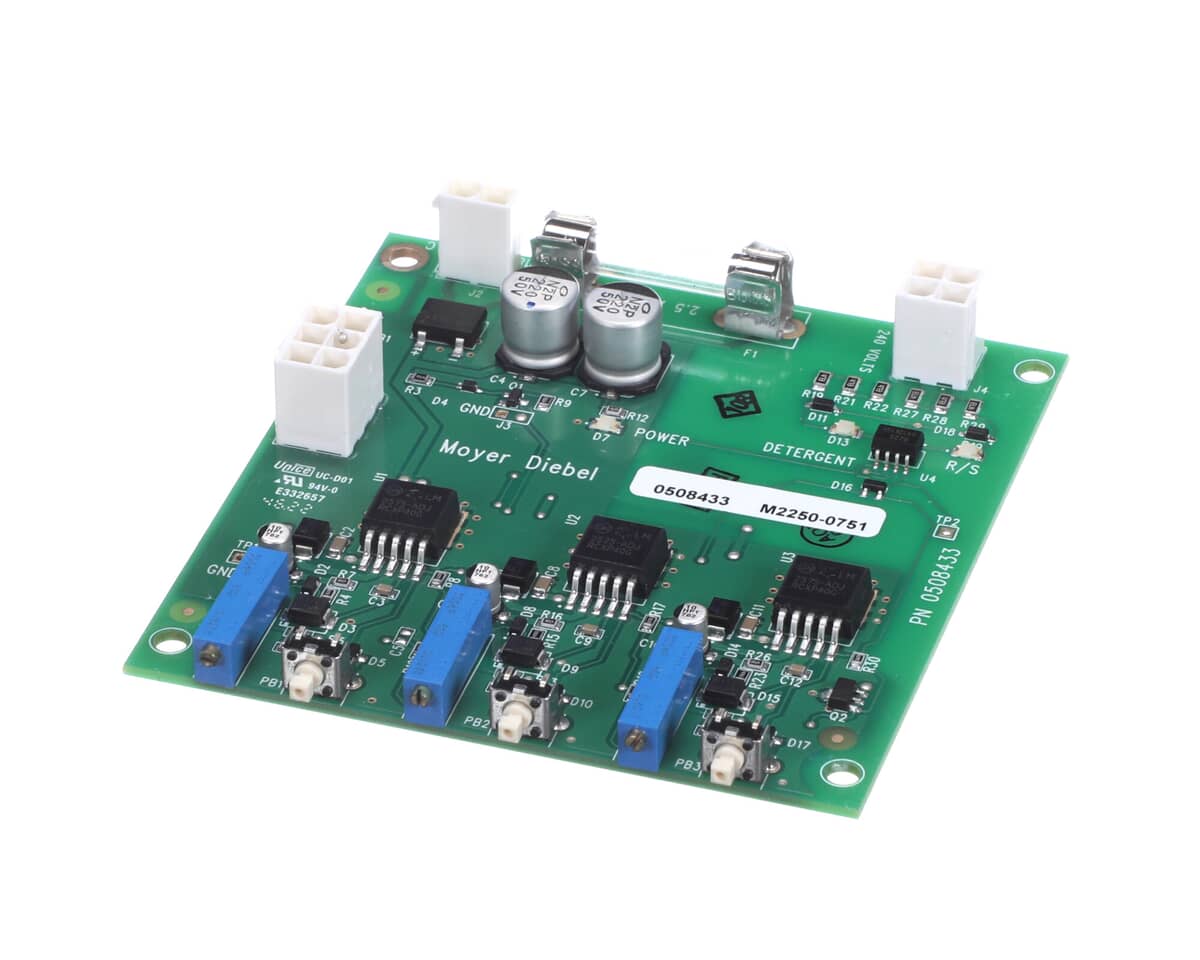

Cma Dish Machines 00819.00

CIRCUIT BOARD MOTOR CONTROL

A printed circuit board (PCB) mechanically supports and electrically connects electronic components or electrical components using conductive tracks, pads and other features etched from one or more sheet layers of copper laminated onto and/or between sheet layers of a non-conductive substrate. Components are generally soldered onto the PCB to both electrically connect and mechanically fasten them to it.

A circuit is a closed path that allows electricity to flow from one point to another. It may include various electrical components, such as transistors, resistors, and capacitors, and the flow is unimpeded unless that path is interrupted by a breaker.

Controls of all kinds are integral parts of restaurant equipment operation. A control is a switch or other device by which a machine is regulated. A control may be manual or automatically operated. An electro-mechanical control typically consists of multiple relays, timers, and/or counters wired together on an enclosure panel. Electro-mechanical control is also referred to simply as "Relay Control", which is a more accurate term since solid state electronic relays, timers, and counters are standard components. Contactors, motor and compressor starters, valves, thermostats, and other output devices are used to turn on/off motors, indicator lights, heating elements, and other components used in the equipment.

Motors are used in all kinds of foodservice equipment to power beaters, blenders, slicers, basket lifts, filters, fans and much more. A motor converts one form of energy into mechanical energy. General-purpose motor designs with standard dimensions and characteristics provide convenient mechanical power for foodservice equipment once customized to the exact OEM specifications (RPM, torque, magnet dimension, winding, etc.).

Different types of motors are used in restaurant equipment, including AC motors, DC motors, and stepper motors. AC motors are used to power equipment that requires high torque, such as mixers, grinders and ice machines. DC motors are used in equipment that requires precise control, such as conveyor belts and automated food prep machines. Stepper motors are used in equipment that requires precise positioning, such as robot arms and automated food dispensers.
