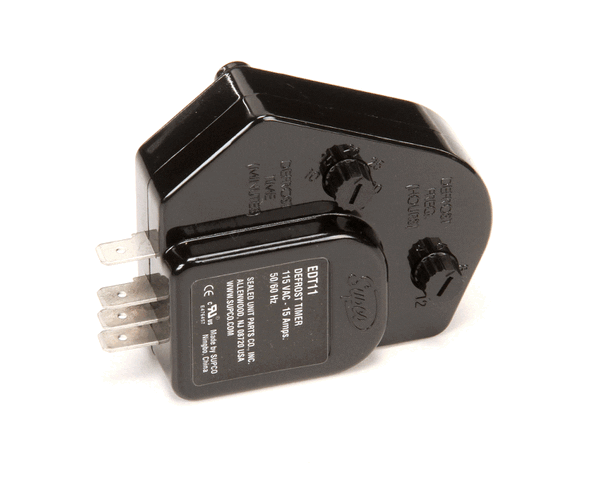

Atosa WA030305
TIMER DEFROST
SKU: ATSAWA030305
Condition: NEW
The defrost mechanism in a refrigerator heats the cooling element (evaporator coil) for a short period of time and melts the frost that has formed on it. The resulting water drains through a duct at the back of the unit. Defrosting is controlled by an electric or electronic timer: For every 6, 8, 10, 12 or 24 hours of compressor operation it turns on a defrost heater for 15 minutes to half an hour.
A defrost thermostat opens the heater circuit when the evaporator temperature rises above a preset temperature, 40°F (5°C) or more, thereby preventing excessive heating of the freezer compartment. The defrost timer is such that either the compressor or the defrost heater is on, but not both at the same time.
A timer is a specialized type of clock used for measuring specific time intervals. Timers can be categorized into two main types. A timer which counts upwards from zero for measuring elapsed time is often called a stopwatch, while a device which counts down from a specified time interval is more usually called a timer. It is a control device that outputs a signal at a preset time after an input signal is received and then triggers another device or action.
HTS Category Code: 8208.30.00
UNSPC Category Code: 48100000
NAICS Code: 333241
Width: 4.5 in (11.43 cm)
Height: 2.0 in (5.08 cm)
Length: 9.5 in (24.13 cm)
Unit of Measure: Each (EA)
