Genuine OEM Atosa W0399080

Nothing Generic, "Equivalent", or Off Brand.™

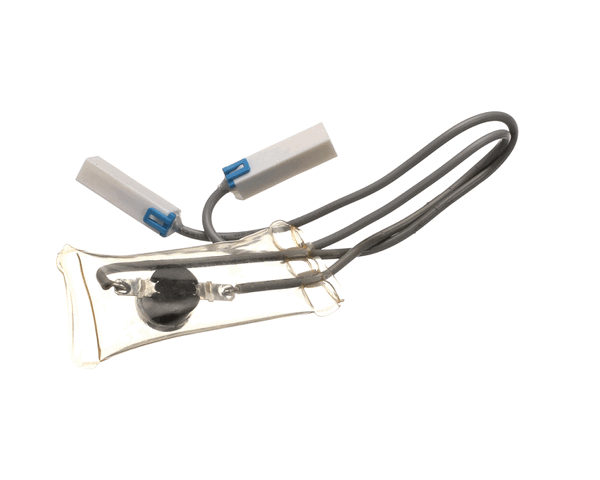

Atosa W0399080

FUSE HEATER DEFROST

GENUINE ATOSA PARTS ONLY
SKU: ATSAW0399080

Condition: NEW

This is a genuine Atosa W0399080 for exact fit and function.
$26.88 $32.43

The defrost mechanism in a refrigerator heats the cooling element (evaporator coil) for a short period of time and melts the frost that has formed on it. The resulting water drains through a duct at the back of the unit. Defrosting is controlled by an electric or electronic timer: For every 6, 8, 10, 12 or 24 hours of compressor operation it turns on a defrost heater for 15 minutes to half an hour.

A defrost thermostat opens the heater circuit when the evaporator temperature rises above a preset temperature, 40°F (5°C) or more, thereby preventing excessive heating of the freezer compartment. The defrost timer is such that either the compressor or the defrost heater is on, but not both at the same time.

A fuse is an electrical safety device that operates to provide over-current protection of an electrical circuit. Its essential component is a metal wire or strip that melts when too much current flows through it, thereby stopping or interrupting the current. Once a fuse has blown, it must be replaced or rewired, depending on the type. There are thousands of different fuse designs which have specific current and voltage ratings, breaking capacity and response times, depending upon the function of the piece of restaurant equipment.

A heating element converts electrical energy into heat through the process of Joule heating. Electric current through the element encounters resistance, resulting in heating of the element. This process is independent of the direction of current.

General Commodity Codes:
HTS Category Code: 8208.30.00
UNSPC Category Code: 48100000
NAICS Code: 333241

Dimensions & Details:
Width: 2.15 in (5.46 cm)
Height: 1.9 in (4.83 cm)
Length: 6.95 in (17.65 cm)
Unit of Measure: Each (EA)
